Repair vertical blue line on lcd monitor

My AOC IPS LCD display had a dead vertical blue line and it was very annoying so I used the method in this video to fix the problem. I hope this method work for your LCD monitor too. What's cause the LCD display vertical line? The answer: The vertical line appears because of a low-quality LCD display or the LCD monitor panel exceed lifespan. This problem can't be fixed. However, the vertical line may appear because of connection wire is loose or glue degrade. This problem can be fixed by the method on the video below. Note: If you want a better result, you have to use hot air dryer blowing on the connecting wire that attaches on the control board. However, you should be very careful about too much heat from a hot air dryer, don't blow hot air too long or your LCD monitor will not working again.

high power led flasher circuit diagram

This page shows you how to make a simple led flasher that can use with high current led bulb(10 Amperes for 12 volts led bulb). This circuit also can flash any led bulb both 12 volts and 220 volts and normal light bulb. The circuit uses minimal electronic components as you can see below picture. The circuit use IC 555 to send the signal to a relay so this circuit can withstand high current without generating any heat like another design. you can see video below for the instruction and test circuit. If you want to see the more interesting video. See my youtube channel here Easyandworksproject youtube channel

The simplest 12 volts led dimmer circuit diagram

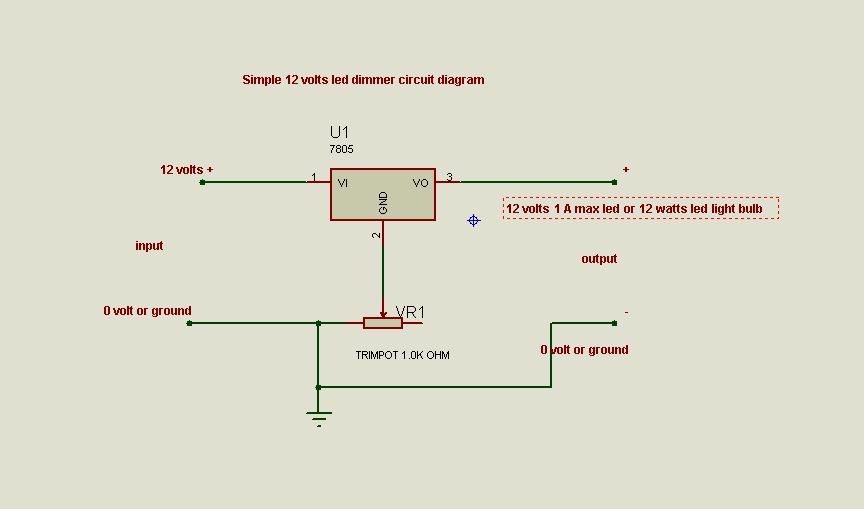

This page shows you how to make the simplest 12 volts led bulb, the led bulb that uses with solar cell or 12 volts adapter.  Why you should use 12 volts led bulb? The simple answer is the 12 volts led bulb doesn't have any flicker that makes your  Eye fatigue. This is the schematic diagram of this project This circuit is simple to make and very safe because the 7805 IC has short circuit protection, over current protection, thermal protection so this circuit is good for beginner to advance electronic DIYer. See the working circuit from the video below. If you love this project, please support us by Share this page to your friends.

How to make an automatic cabinet/ wardrobe light

This project will show you how to make an automatic cabinet/wardrobe light that uses only one battery. This circuit has a very long battery life and easy to install, it does not consume any energy when standby too. All parts you need: 1 x 5 volts led strip 1 x 18650 battery 1 x refrigerator door switch Soldering iron wire hot glue gun screws 18650 battery can supply around 3.7 volts but the 5 volts strip can operate without any problem. This automatic cabinet light doesn't consume any energy when standby because of the switch is just on/off switch that uses metal contact. Let's see how it works in the video below.

4 life hack you may not know

Hello, today I will show you some life hack and repair that you never known. The methods time in the video shown below. 0:07 hack empty lighter to work again 0:35 Speaker dust cap repair 1:16 temporary increase smartphone sound volume 1:27 emergency cellphone stand

Cellphone white spot on back body repair

My vivo v9 has the ugly white spot on it. Don't think you can save your phone color by using a back cover, some small particles can enter in a phone case and cause severely scratches or white spot like my vivo v9 phone. However, you can fix it like a car paint repair job. See video below about how to repair back spot color on your smartphone.

Simple class a audio amplifier circuit diagram

This post shows a video about how to make a simple class a single-ended(the most transparent sound amplifier circuit). The circuit has low output power because I want to make the audio amplifier that sounds good but not generate to much heat to my room(class a generate heat even it stay idle). The first part in this video is a sound test and a circuit is last. 😊 The amplifier has a low output impedance because of high negative feedback from op amp and also lower THD. The disadvantage of this circuit is it has low power, so you must find high sensitivity speaker if you want high sound volume and it not good for an action movie. This circuit draw current from op amp around 12 mA (according to lm 4562 datasheet) but if increase bias current at output state it may draw more current from the op amp because the op amp negative feedback try to maintain output to match non inverting input voltage reference. see the video here see the method to connect power amp input to volume cont

Two ways light switch wiring diagram

If you want to know how to connect 2 ways light switch, this post is the right place for you. 2 ways light switch is normally used for an up-down stair light switch that you can turn the light on or off with both switches independently. All you need for this project: 2 x two ways light switch 1 x mains testing screwdriver some wire for 110/220 volts AC

Long range IR sensor circuit diagram

In a previous post, I made an Infrared sensor that has a maximum range of only 5 centimeters but my audience want more detector range so I made the circuit for him and for all of you who interesting in DIY electronic project!!! The circuit use opamp comparator configuration that stable than a previous circuit that I use just two transistors to make the job done.  This circuit has detector range about 25 centimeters and can easily adjust detector range easily with a potentiometer(R4 in the below picture). You may need to block strong light expose directly to an Infrared sensor or the circuit will always turn on forever.  You can find the electronic components details in the above picture and you can see the instruction on my video below. You can ask any question on the comment box below if you have any question about this project. Enjoy DIY world!!!

Good news!!! get https for blogspot custom domain for free

Blogspot gives you a free upgrade from HTTP: to  HTTPS: for free. Now your website will rank  better  in Google  search with HTTPS and a user will feel more secure when surfing to your website.  What is HTTPS? According to google support website.  What a security certificate is When you go to a site that uses HTTPS (connection security), the website's server uses a certificate to prove the website's identity to browsers, like Chrome. Anyone can create a certificate claiming to be whatever website they want.  To help you stay on safe on the web, Chrome requires websites to use certificates from trusted organizations. How to get free HTTPS to your Blogspot (including custom domain one) When you blogger dashboard you just navigate to Setting > Basic and you will see the page like the image below. All you have to do is Change HTTPS Availability and HTTPS redirect to yes and your website will automatically change to HTTPS in a few minutes. I hope this

Humidity sensor with led alarm | Arduino project

This page contains Arduino Humidity sensor with led alarm source code. This project is good for someone who wants to make a humidity meter or hygrometer with led alarm if humidity and temperature over a threshold. It's easy to make and doesn't require an external power supply, just use power from an Arduino UNO R3 board (USB power compatible with this project). Electronic components list: 1 x Arduino Uno R3 1x 20 x4 I2C LCD display 1 x AM 2320 humidity/temp sensor 1 x 5 mm led ( 2 x if you plan to use led for pin 13 instead built-in led) 1 x 1000 ohms resistor ( 2 x if you plan to use led for pin 13 instead built-in led) Any USB power adapter, 500 mA current at least. Here is the Arduino code: AM 2320 library  https://github.com/hibikiledo/AM2320 LCD display i2c library  https://github.com/fdebrabander/Arduino-LiquidCrystal-I2C-library #include <Wire.h> #include <AM2320.h> #include <LiquidCrystal_I2C.h> LiquidCrystal_I2C lcd(0x3F, 20, 4);

How to make an emergency led light

This video shows you how to make an emergency light, it is the very important thing when a 110/220 AC power failure. This circuit will make your life better!!! This emergency led light project use minimal electronic components and can work over 10 hours and recharge automatically. The circuit uses USB power supply so you can use old smartphone adapter as power supply, 5 volts, and 1 Ampere is the minimum required for this circuit. Electronic component list: 1 x  18650 Li-ion battery 1 x TP 4056 Li-ion battery charger module 1 x 5 volts relay 1 - 10 x 100 ohms resistor 1 - 10 x low current white led (another color is ok but white led is the best) 5 volts 1 Ampere USB type c adapter Real electronic components picture After you got all the electronic components I listed above, it's time to make the circuit by watching my video. This circuit has a very long life, all you need to change is 18650 battery(many years). You may need to recharge the batter

How to build high current hall effect sensor

I published hall effect sensor circuit diagram and my audience asked me how to make a hall effect sensor that has a high current capability, so I made it for him and for all of you who want to build high current hall effect sensor. Normally, hall effect sensor used for detect magnetic field and send output to a microcontroller, that means any hall effect sensor doesn't need to have high current output. However, if you want to drive motor or any high current device without a microcontroller, this circuit is the best for you. List of components for this project: 1 x IRF 9540N (P channel MOSFET) 1 x A3144 hall effect sensor 1 x 1 kilo-ohms resistor 1 x 10 kilo-ohms resistor optional (use for led indicator) 1 x 1 kilo-ohms resistor 1 x White, red, blue or any other low current led Note: all resistor for this circuit is 1/4 watt, 20 % tolerance is ok with this circuit. The principle of this circuit: When hall effect sensor detects magnetic

How to make an IR toggle switch

Hello, today I will show you how to make an IR toggle switch with Arduino and a Mosfet, it has far more detection range than capacitive touch device and easy to build. The circuit is easy to use and use minimal components to make a job done, now let's start Components list: R1 = 100 ohms resistor R2 = 470 Kilo-ohms resistor R3 = 10 Kilo-ohms resistor R4 =1000 ohms or 1 kilo-ohms IR1 = infrared led IRR1 = infrared receiver led = low forward voltage led, you can find it on any electronic part store Tube1 =Shrink tubing 1 x irf9540n p-type Mosfet If you have the components I list ready, it's time to upload this code to your Arduino UNO r3 /* switch  *   * Each time the input pin goes from LOW to HIGH (e.g. because of a push-button  * press), the output pin is toggled from LOW to HIGH or HIGH to LOW.  There's  * a minimum delay between toggles to debounce the circuit (i.e. to ignore  * noise).    *  * David A. Mellis  * 21 November 2006 * little edit by
