Simple Temperature Control Fan Speed circuit diagram

-
Today I will show you how to make a very simple temperature control fan speed circuit. I use very minimal parts and works in real life.

This circuit change 12 volts DC fan speed by temperature. The hotter the temp, the faster fan speed. The circuit principle is a voltage divider between T1 and 20 K potentiometer. When temperature increase, the Thermistor resistance decrease and make the voltage set point between T1 and R1 increase until it is higher than a Mosfet Vgs threshold and make a Mosfet change to ON state and conduct current to a fan.

Below picture is the parts you need.
Note: T1 is 10 K thermistor

See the video below that shows how it work and full circuit diagram and the important of C1

Comments

Post a Comment

Popular posts from this blog

How to add power supply filter capacitor to amplifier board.

-
I saw a new comment on my video, he asked me how to add a filter capacitor to amplifier board D.C. power supply. I think it's a good question so I will explain it here. What is a power supply filter capacitor? It is the capacitor that used to filter AC ripple from DC power supply present to amplifier board. If an amplifier has low capacitive power supply capacitor, it may present a little hum(50/60 Hz low-frequency sound) that you can hear in a quiet room. The capacitor also stores power and bring it instantly to your amplifier when an amplifier needs more power for a short period of time such as  explosion sound in a movie. However, If an amplifier has high-frequency power supply noise from a switching power supply, small capacitor need to parallel to a power supply and must be attached close to power amplifier IC as much as possible. Below pictures are the place that you add power supply capacitor. PAM 8610 board amplifier power supply sign Cautio
Read more

Resistor color code

-
A resistor is the most important electrical component in almost every electronic circuit, it can limit current to any load such as led, transistor, op-amp, etc.  We must read the resistor color code if we want to know the resistive value, tolerance, temperature coefficient. Resistors have different color bands (3,4,5,6) the more color bands the more resistor information. Now let's start with 3 bands resistor color code. The above resistor has only 3 bands First digit, Second digit, and multiply. A 3 bands resistor color code has a fixed +/- 20% tolerance which means if the color code value is 1,000 ohms the real-life resistive value may be +/- 200 ohms.  4 band resistor color code A 4 bands resistor color code has a tolerance value color strip, the resistor on the above picture has 5% tolerance. This type of resistor uses in a regular circuit such as television, radio, washing machine. 5 bands resistor color code A 5 bands resistor color codes have th
Read more

How to connect volume control to an amplifier

-
I saw a comment on my Youtube video, he asked me how to connect any amplifier module to a volume control or potentiometer. I think so many people who want to start an electronic project must know this basic wiring too, I hope this wiring diagram will help an electronic DIYer like me. First thing you need to know: use shield wire for an input signal to volume control and from volume control to amplifier if you don't want you amplifier suffers from parasitic oscillation (sound like JeeeeJeeeee). keep a wiring as short as possible. use low resistive value volume control (5-10 kilo-ohms) if the amplifier has random parasitic noise when you turn a volume control up or down. volume control is a potentiometer. Volume control principle is a signal divider, the more volume control output(yellow line) near input signal source(pink line) the most signal flow to an amplifier. When you lower a volume control the resistive value between a volume control output
Read more

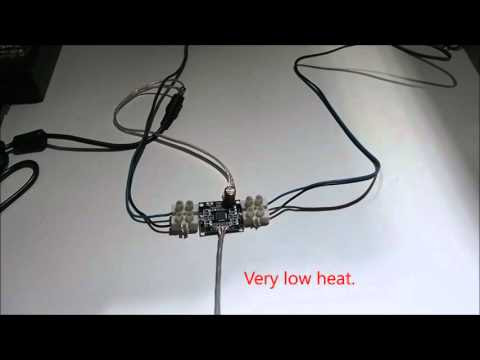

10 watts 8 ohms class d amplifier pam8610 sound test

-
